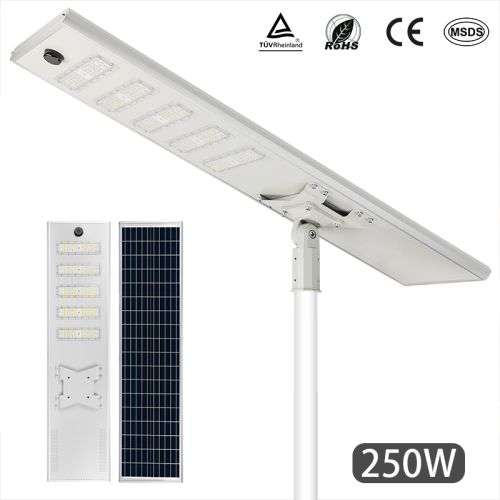

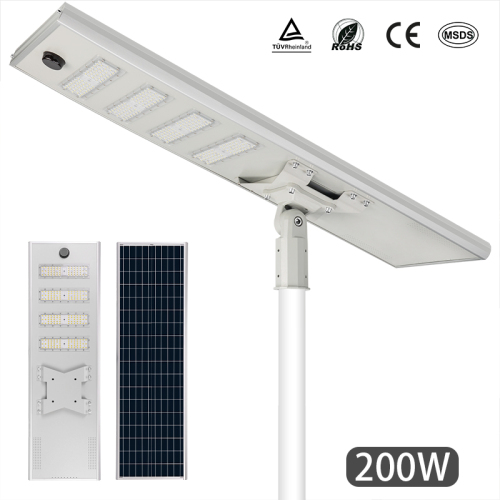

All in One Automatic Solar Street Lights For Highway

Item No.: HC-HYJ
Voltage: 100W, 150W, 200W, 250W
Material: Aluminum Profile
Battery: Lithium Iron Phosphate Battery
Solar Panel Voltage: 18V
Battery Voltage: 12.8V
Brand Of LED Chips: CREE
Charger: MPPT
Application:  Plaza, parking lot, garden, courtyard, outdoor,
Description
Description



Product Parameter


Model Number HC-HYJ-100W HC-HYJ-150W HC-HYJ-200W HC-HYJ-250W
Power 100W 150W 200W 250W
Battery Capacity 12.8V/32000mAh 12.8V/50000mAh 12.8V/56000mAh 12.8V/72000mAh
Solar Panel 18V/48W 18V/68W 18V/90W 18V/105W
Lamp Dimension 720*358mm 1000*358mm 1180*358mm 1450*358mm
Recommended Installation Height 6m-8m / 19.69ft-26.25ft 8m-10m / 26.25ft-32.81ft 10m-11m / 32.81ft-36.10ft 10m-12m / 32.81ft-39.37ft
Light Source CREE
LED Chips Type 3030
CRI >70
Life Span 50000h
CCT 3000K~6500K
Beam Angle 60*90°
Ambient Temp -35℃~+55℃ / -31℉~131℉
Life Span >50,000h
Controller Light Control + PIR Sensor
IP Rating IP65
IK Rating IK08
Warranty 3 Years
Certification CE, RoHS, MSDS




Product Feature


Heat Dissipation Design
This all-in-one solar street light has two heat dissipation designs:
1. The die-casting aluminum shell is adopted. And the surface is automatic electrostatic powder coating to provide good corrosion resistance and heat dissipation for the solar street light.
2. The lamp housing has a heat dissipation hole design, which can function as a drainage hole and accelerate heat dissipation.

Easy Maintenance
The battery and the solar panel are connected by the patented 24K gold-plated plug developed by the HIGH CLASS, which can reduce wire loss and prevent poor contact. When the lamp fails, as long as you disassemble the casing and unplug the plug, the parts inside can be safely replaced.
High Light Efficiency
The all-in-one solar street light developed by HIGH CLASS for highway projects has multiple configurations to ensure the high luminous efficiency of the street light:
1. Using high-efficiency monocrystalline silicon solar panels applied in solar energy storage equipment ensures the conversion rate of solar energy and provides sufficient power for high light efficiency.
2. Using CREE LED chips as a light source with an optical lens ensures high brightness.


Main Components of All in One Solar Street Light


Item QTY Parameter Brand
LiFePo4 Battery 1 set Rated Power:
32Ah/50Ah/56Ah/72Ah
Rated Voltage:
DC12.8V, DC 6.4V, DC 3.2V
HIGH CLASS
Controller 1 pcs Rated Voltage: TBD
Rated Power: TBD
MPPT
LED Chips 120 pcs
180 pcs
240 pcs
300 pcs
LED Size: 3030 CREE
Solar Panel 1 pcs Rated Voltage:
18V, 10V, 6V
Rated Power:
48W, 68W, 90W, 105W
HIGH CLASS
Lamp 1 set Material: aluminum profile + die-casting aluminum HIGH CLASS

Why choose all-in-one solar street lights in projects?

1. Cost Saving:

A. Compared with the electrical lights, the solar all-in-one street lights have no requirements on the power grid in the installation area. They do not need to dig the wire trough to bury the wires, which can save a lot of construction costs.

B. The integrated solar street light uses solar power to generate electricity. It will not incur any electricity charges during use. Because there is no need to install wire and maintain wire in the later period, it can save a lot of later maintenance costs.

2. The installation is simple, the solar panel and the lamp are integrated, and there is no need to assemble, saving a lot of labor and time costs.

3. The integrated solar street light has few packaging accessories, which is convenient for transportation and reduces transportation costs.




Product Details
Customer Feedback
